INSULATION
1. STONE WOOL
Stone wool is a fire-resistant, water-repellent heat and sound insulation material containing 97% natural fibers and produced by melting minerals and inorganic stones derived from volcanic rocks such as basalt, diabase and dolomite between 1400-1500 °C to form fibers.
Stone wool, which has a saturated structure and is obtained at the end of special procedures applied to all layers of its fibrous structure, prevents humidity from being absorbed in the building thanks to its steam permeability, while acting as a good water repellent. Buildings insulated with stone wool become healthier and more comfortable. Thanks to its dimensional stability, stone wool is not affected by temperature changes. Its long fiber structure allows obtaining a product with smooth edges and surfaces during cutting and lamination.
AREAS OF USAGE
- Partition walls
- Stairwell and elevator shafts
- Exterior thermal insulation systems
- Steel and wooden roof systems with any angles
- Trafficable and non-trafficable flat roof
- Floating floor
- Aluminum, PVC, Granite, Marble and glass facade systems
- Sandwich panel systems that require class A1 Fire Resistance
- Fire doors
- Vessel interior fittings
- Cofferdam walls
STONE WOOL PLUS
PLUS is used in light partition walls, internal insulation of exterior walls, stairwells, elevator shafts, fire doors, plaster boards and adjacent wall applications.
TECHNICAL SPECIFICATIONS AND THE TSE STANDARD | |
| Density (kg/m3) | 40 |
| Thickness (mm) | 30 – 200 |
| W x H (mm x mm) | 600 x 1200 |
| Thermal conductivity (W/mK) | 0,036 |
| Thickness class | T4 |
| Compressive strenth (kPa) | NPD |
| Tensile strength (kPa) | NPD |
STONE WOOL DESIBEL
Desibel is used for fire save and termal insulation of the internal surfaces of exterior walls, internal, adjacent walls, staircases elevator shafts. It is a composite ready product, insulated of a stonewool board faced with gypsum board on one side and aluminium foil in between.
TECHNICAL SPECIFICATIONS AND THE TSE STANDARD | |
| Density (kg/m3) | 30,50,80 |
| Thickness (mm) | 110 |
| W x H (mm x mm) | 1200 x 2700 |
| Thermal conductivity (W/mK) | 0,036 |
| Thickness class | T5 |
| Compressive strenth (kPa) | NPD |
| Tensile strength (kPa) | NPD |
STONE WOOL GOLD – STONE WOOL GOLD PLUS
GOLD&GOLD Plus series are particularly used for ventilated facade or rain-screen cladding systems, aluminium, pvc, granite, ceramic, glass concrete wall or brick wall.
TECHNICAL SPECIFICATIONS AND THE TSE STANDARD | ||||
| Density (kg/m3) | 40 | 50 | 70 | 90 |
| Thickness (mm) | 30-200 | 25-200 / 50-200 | 25-200 / 30-200 | 30-200 |
| W x H (mm x mm) | 600 x 1200 | 600 x 1200 | 600 x 1200 | 600 x 1200 |
| Thermal conductivity (W/mK) | 0,033 | 0,033 | 0,033 | 0,033 |
| Thickness class | T4 | T4 | T4 | T4 |
| Compressive strenth (kPa) | NPD | NPD | NPD | NPD |
| Tensile strength (kPa) | NPD | NPD | NPD | NPD |
STONE WOOL PREMIUM F – PREMIUM F 120 – PREMIUM F 150
PREMIUM F/F150 series is used externall wall of buildings for termal and acoustic insulation. The main medhods are gluing, mechanical fastening or combination of both. Bonus Wooler PREMIUM F provides well insulated facades longer protection with exellent termal conductivity and fire resistance.
TECHNICAL SPECIFICATIONS AND THE TSE STANDARD | |||
| W x H (mm x mm) | 600 x 1200 | 600 x 1200 | 600 x 1200 |
| Thermal conductivity (W/mK) | 0,034 | 0,035 | 0,03 |
| Thickness class | T5 | T5 | T5 |
| Compressive strenth (kPa) | NPD | NPD | NPD |
| Tensile strength (kPa) | ≥10 | ≥10 | ≥15 |
STONE WOOL PREMIUM R – STONE WOOL PREMIUM R 150
PREMIUM R boards are used for flat roof application systems. Bonus leading brand offers for various application in roof insulation with high compressive strength. As they can be used on metal and woodden roofs with any slope, they can also be applied on trafficable or non-trafficable terrace roofs.
TECHNICAL SPECIFICATIONS AND THE TSE STANDARD  | ||
| Thickness (mm) | 30 – 120 | 30 – 120 |
| W x H (mm x mm) | 600 x 1200 | 600 x 1200 |
| Thermal conductivity (W/mK) | 0,037 | 0,038 |
| Thickness class | T5 | T5 |
| Compressive strenth (kPa) | ≥ 35 | ≥ 50 |
| Tensile strength (kPa) | NPD | NPD |
STONE WOOL PLATIN
PLATIN series can be used on floorings and between flooring gaps, open crossing. It is an excellent choice to reduce impact noise pollution, with absorption performance in flooring applications. The open fibrous structure of stone wool absorbs impact sounds on the buildings.
| TECHNICAL SPECIFICATIONS AND THE TSE STANDARD | |
| Density (kg/m3) | 110 |
| Thickness (mm) | 20-50 |
| W x H (mm x mm) | 600 x 1200 |
| Thermal conductivity (W/mK) | 0,036 |
| Thickness class | T5 |
| Compressive strenth (kPa) | NPD |
| Tensile strength (kPa) | NPD |
1.7. STONE WOOL PRIVATEPRIVATE boards faced with aluminium foil on one side used for external thermal insulation, internal sound insulation of air conditioning and ventilation ducts. It can be produced in custom sizes as thin as 2.5 cm.
| 1.8. STONE WOOL INDUSTRIAL BATT
INDUSTRIAL BATT is used in extremely high temperatures and fire insulations in steel constructions, process equipments (such as boilers, electronic filters, channels, double-walled containers, drying ovens) and ready-to-use panel applications at all types of industrial facilities. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1.9. STONE WOOL FLEXIBLE ALU | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TECHNICAL SPECIFICATIONS AND THE TSE STANDARD | |
| Thickness (mm) | 25 |
| Density (mm) | 100 |
| Depth (mm) | 950 x 8400 |
| W x H (mm x mm) | 50-100-150-200-250-300-350 |
| Thermal conductivity (°C) | 0,040-0,050-0,058-0,061-0,082-0,095-0,117 |
| Thermal conductivity (W/mK) | T5 |
| Thickness class | NPD |
| Compressive strenth (kPa) | NPD |
1.10. STONE WOOL INDUSTRIAL MW
| TECHNICAL SPECIFICATIONS AND THE TSE STANDARD | ||||
| Density (kg/m3) | 80 | 90 | 100 | 125 |
| Depth (mm) | 30 – 40, 50 – 60, 70 – 120 | |||
| W x H (mm x mm) | 1000 x 8000, 1000 x 5000, 1000 x 3000 | |||
| Thermal conductivity (°C) | 50, 100, 150, 200, 250, 300, 350 | |||
| Thermal conductivity (W/mK) | 0,039-0,049-0,058-0,069-0,080-0,090-0,110 | 0,039-0,049-0,057-0,066-0,077-0,085-0,102 | 0,038-0,048-0,056-0,065-0,075-0,082-0,096 | 0,037-0,047-0,054-0,063-0,073-0,080-0,094 |
| Thickness class | T1 | |||
| Compressive strenth (kPa) | NPD | |||
| Tensile strength (kPa) | NPD | |||
INDUSTRIAL MW is produced in roll form with wire mesh and used for fire safety and Thermal Insulation of industrial plants, process equipments such as boilers, pipes, channels, ovens. The rolls are suitable for application in high temprature. They are available in 4 different types as MW 650, 700, 720, 750 with different thickness and different technical values.
1.11. STONE WOOL PANEL
PANEL products are used for sandwich panel production. Stonewool insulated panels has excellent fire resistance and used in wall and roof cladding in industrial facilities, airplane hangars, shopping malls, military structures, prefabricated contsruction site and cold storages, wharehouses.
| TECHNICAL SPECIFICATIONS AND THE TSE STANDARD | |
| Product code | PANEL |
| Density (mm) | 100 – 200 |
| Thickness (mm) | 30 – 200 |
| W x H (mm x mm) | 600-1000 x 1200-2400 |
| Thermal conductivity (W/mK) | 0,040 |
| Thickness class | T4 |
| Compressive strenth (kPa) | NPD |
| Tensile strength (kPa) | NPD |
1.12. STONE WOOL DOOR
High-density insulation plate used for manufacturing fire doors.
| TECHNICAL SPECIFICATIONS AND THE TSE STANDARD | |
| Product code | DOOR |
| Density (mm) | 150 |
| Thickness (mm) | 30 – 120 |
| W x H (mm x mm) | 600-1000 x 1500-2500 |
| Thermal conductivity (°C) | 50-100-150-200-250-300-350 |
| Thermal conductivity (W/mK) | 0,040- 0,50- 0,058- 0,061- 0,082- 0,095- 0,117 |
| Thickness class | T5 |
| Compressive strenth (kPa) | NPD |
| Tensile strength (kPa) | NPD |
STONE WOOL LOOSE
Used in double-walled containers, laboratory devices, electrical house appliances, ovens, electrical cables, installations and exhaust pipes.
| TECHNICAL SPECIFICATIONS AND THE TSE STANDARD | |
| Product code | LOOSE STONEWOOL |
| Thermal conductivity coefficient (W/mK) | 0,036 |
STONE WOOL MARINE
Marine boards is used in ship and marine constructions, cofferdam walls and fire sections, fire doors and interior ship insulations, furnaces, boilers and high-temperature areas such as steam chimneys.
| TECHNICAL SPECIFICATIONS AND THE TSE STANDARD | ||||
| W x H (mm x mm) | 600 x 1200 | 1200 x 3000 – 5000 | 1000 x 3000 – 8000 | 1000 x 5000 – 8000 |
| Thickness (mm) | 30-60 | 50-100 | 30-100 | 30-60 |
| Density (mm) | 150 | 45 | 60 | 125 |
| Thermal conductivity (W/mK) | 0,037 | 0,036 | 0,036 | 0,036 |
| Thickness class | T4 | T4 | T4 | T4 |
| Compressive strenth (kPa) | NPD | NPD | NPD | NPD |
| Tensile strength (kPa) | NPD | NPD | NPD | NPD |
2.ROOF INSULATION MATTRESS
2.1. PARTITION INSULATION
2.1.a. MINERAL PLUS IPB 039
- Low heat transfer coefficient, resistant to heat conduction. λ = 0,039 W/m.K
- Absorbs sounds in the air.
- Fire reaction class is A1.
- Minimum dusting, does not itch.
- Flexible, easy to use, saves time and labour.
- Compressed package; low stock cost..
2.1.b. MINERAL PLUS IPB 037
- Low heat transfer coefficient, resistant to heat conduction. λ = 0,037 W/m.K
- Absorbs sounds in the air.
- Fire reaction class is A1.
- Minimum dusting, does not itch.
- Flexible, easy to use, saves time and labour.
- Compressed package; low stock cost.

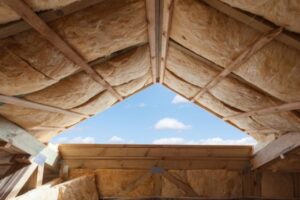

PITCHED ROOF INSULATION
EARTHWOOL 043 ALU
- Thanks to its low thermal conductivity coefficient, it provides excellent thermal insulation and contributes to sound insulation.
- It is in A1 class in fire reaction classification.
- Thanks to its unique fibre structure, it causes less dusting and less scratching than alternative mattresses.
- Allows easy and comfortable applications.
- Thanks to its flexible and durable fibre structure, the material is cut much more easily.
- Thanks to its innovative ECOSE® Technology, it does not contain phenol and formaldehyde derivative harmful chemicals, acrylic and colourants in its binder.
- It is environmentally friendly with its recyclable raw material content; It contributes to the formation of healthier and livable living spaces in buildings.
- It prevents possible heat and acoustic leaks by fitting perfectly on the details.
EARTHWOOL 043
- Thanks to its low thermal conductivity coefficient, it provides excellent thermal insulation and contributes to sound insulation.
- It is in A1 class in fire reaction classification.
- Thanks to its unique fibre structure, it causes less dusting and less scratching than alternative mattresses.
- Allows easy and comfortable applications.
- Thanks to its flexible and durable fibre structure, the material is cut much more easily.
- Thanks to its innovative ECOSE® Technology, it does not contain phenol and formaldehyde derivative harmful chemicals, acrylic and colourants in its binder.
- It is environmentally friendly with its recyclable raw material content; It contributes to the formation of healthier and livable living spaces in buildings.
- It prevents possible heat and acoustic leaks by fitting perfectly on the details.
EARTHWOOL 035
- Thanks to its low thermal conductivity coefficient, it provides excellent thermal insulation and contributes to sound insulation.
- It is in A1 class in fire reaction classification.
- Thanks to its unique fibre structure, it causes less dusting and less scratching than alternative mattresses. It allows easy and comfortable applications.
- Thanks to its flexible and durable fibre structure, the material is cut much more easily.
- Thanks to its innovative ECOSE® Technology, it does not contain phenol and formaldehyde derivative harmful chemicals, acrylic and colourants in its binder.
- It is environmentally friendly with its recyclable raw material content; It contributes to the formation of healthier and livable living spaces in buildings.
- It prevents possible heat and acoustic leaks by fitting perfectly on the details.
MAXIPRO INSULATION
- Thanks to its low thermal conductivity coefficient, it provides excellent thermal insulation and contributes to sound insulation.
- It is in A1 class in fire reaction classification.
- Thanks to its unique fibre structure, it causes less dusting and less scratching than alternative mattresses.
- Allows easy and comfortable applications.
- Thanks to its flexible and durable fibre structure, the material is cut much more easily.
- Thanks to its innovative technology, it does not contain phenol and formaldehyde derivative harmful chemicals, acrylic and colourants in its binder.
- It is environmentally friendly with its recyclable raw material content; It contributes to the formation of healthier and livable living spaces in buildings.
- It prevents possible heat and acoustic leaks by fitting perfectly on the details.
2.3. CURTAIN WALL INSULATION
2.3.a. MINERAL PLUS FCB037 KD
- Low heat transfer coefficient, resistant to heat conduction. λ = 0,037 W/m.K
- Absorbs sounds in the air. Provides sound insulation.
- Fire reaction class is A1.
- Minimum dusting, does not itch.
- Flexible, easy to use, saves time and labour.
- Compressed package; low stock cost.
- Covered with Ecose® Tulle against external influences.
- It has extra durability.
2.3.b. MINERAL PLUS FCB037
- Coil or Sheet Plate
- Coated or Uncoated
USAGE AREAS
Renovation or New Building Renovation, New Building, Building Type Public Projects, Residential, Hotel, Industrial.
2.3.c. MINERAL PLUS FCB034 KD
- Low heat transfer coefficient, resistant to heat conduction. λ = 0,034 W/m.K
- Absorbs sounds in the air.
- Fire reaction class is A1.
- Minimum dusting, does not itch.
- Flexible, easy to use, saves time and labour.
- Compressed package; low stock cost.
- Covered with Ecose® Tulle against external influences.
- It has extra durability.
2.3.d. MINERAL PLUS FCB034
- Low heat transfer coefficient, resistant to heat conduction. λ = 0,034 W/m.K
- Absorbs sounds in the air.
- Fire reaction class is A1.
- Minimum dusting, does not itch.
- Flexible, easy to use, saves time and labour.
- Compressed package; low stock cost.
2.3.e. MINERAL PLUS FCB033 EXTRA
- Low heat transfer coefficient, resistant to heat conduction. λ = 0,033 W/m.K
- Absorbs sounds in the air.
- Fire reaction class is A1.
- Minimum dusting, does not itch.
- Flexible, easy to use, saves time and labour.
- Compressed package; low stock cost.
2.3.f. MINERAL PLUS FCB032 PRO
- Low heat transfer coefficient, resistant to heat conduction. λ = 0,032 W/m.K
- Absorbs sounds in the air.
- Fire reaction class is A1.
- Minimum dusting, does not itch.
- Flexible, easy to use, saves time and labour.
- Compressed package; low stock cost.
3.HEAT INSULATION BOARDS (ASMOLEN)
EPS
Sandwich wall panels with eps care are designed for applications in various buildings: industrial, commercial and residential. During production, an e-cored sandwich panel from the europanels series is formed with external and internal metal skins profiled to the desired shape. These skins are then glued to the polystyrene blocks with special polyurethane adhesive. Eps blocks are assembled in length with a pre-prepared modular width. The main advantage of eps core panels is their low and affordable price.
3.1.a. EPS OPTIMIERIt provides 15% better thermal insulation performance compared to white EPS board used in thermal insulation between walls. It is light and flexible, maintains size balance. It is used to provide thermal insulation between walls built with brick, gas concrete, pumice block and similar materials.
| 3.1.b. EPS FASSADEIt provides the ideal thermal insulation performance sought in EPS exterior sheathing applications with at least 100kPa surface perpendicular shrinkage value and 0.034W/mK heat conduction coefficient value. It has sufficient flexibility, does not break when cutting, does not disperse and is easily applied to the wall. Dimensional stability and thermal insulation performance does not change throughout the life of the building. Gases harmful to humans and the environment are not used in its production.
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
3.1.c. EPS PLUS
It gets its grey colour from the graphite additive it contains. Thanks to the graphite additive, it absorbs the rays coming from the sun and reflects them at the same time. Due to this feature, it offers better thermal insulation performance than other grey coloured EPS thermal insulation boards that do not contain graphite. Thanks to its high flexibility capability, it does not break or disperse while cutting during application and is easily applied to the wall. It does not hold water on it, its water repellent feature is increased and it has a very low water absorption rate (WL(T) 2 ≤ 2%). Maintains its dimensional stability throughout the life of the building. No gases harmful to human and environment are used in its production.
| 3.1.d. EPS PREMIUM
With its 0,030 W/mK thermal conductivity coefficient value, it offers much higher thermal insulation performance in applications of the same thickness compared to other grey EPS thermal insulation boards. In TS 825 calculations, it can be included in the calculation from the 030 thermal conductivity group. Thanks to the graphite additive it contains, it absorbs the rays coming from the sun and reflects them at the same time. Thanks to its high flexibility capability, it does not break or disperse when cutting during application and is easily applied to the wall. It maintains its dimensional stability throughout the life of the building, no gases harmful to human and environment are used in its production. It is used for external thermal insulation and jacketing applications of building walls and thermal insulation applications on terraces and hipped roofs
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
3.1.e. EPS ASMOLENIt is composed of expanded polystyrene rigid foam, has closed pores, white colour, minimum 30kpa compressive strength, 50kpa bending strength EPS Asmolen filling product. It is used as filling material in concrete slabs in accordance with static calculations in building constructions in order to reduce the slab weight.
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
3.2. XPS
It is a rigid polystyrene-based thermal insulation board (extruded polystyrene – XPS) with high compression strength.
USAGE AREAS
- Interior and exterior facade
- Roofs and terraces
- Foundations
- Basement shear walls
- Parking lots
- Airport runways
- Railways
- Under or over concrete
- Under screed
- Sandwich roof and wall panels
- Refrigerated truck haulages
- Cold
- Air storages
- Emergency huts
- Construction sites and military protection units
- Glass-free sections of profile systems
- Thermal insulated sandwich partition walls
- Breeding farms
3.2.a. XPS GOLD It thermal insulation board is used under facade solutions and underfloor insulation.
3.2.b. XPS PLATIN
It is used in any type of roofing application, in an inverted roof, conventional roof. PLATIN is placed on top of membraneenabling a good insulation solutions for foundation, terrace, garden or green roof on the top of your building.
| 3.2.c. XPS PLUS PLUS thermal insulation board that can be used for External insulation, columns and beams of the building. It offers the overall performance of the building envelope to help you achieve a longer lasting, energy efficient and sustainable buildings.
3.2.d. XPS PROPRO thermal insulation boards are used for exterior thermal insulation and columns and beams of the building.
| ||||||||||||||||||||||||||||||||||||||||||
3.2.e. XPS PREMIUM PREMIUM thermal insulation boards are used in internal insulation applications.
3.2.f. XPS PANEL PANEL is used for PVC and Aluminium sandwich panel production. The panels is used for refrigerated trucks in sandwich roof and wall panels, refrigerated trucks, cold air storages, emergency huts, glass-free sections of profile systems and thermally insulated sandwich partition walls.
| 3.2.g. XPS PRIVATE PRIVATE thermal insulation blocks are suitable to produce the papier mache products with CNC cutting machinery for internal decorative application.
3.2.h. XPS CLINKER CLINKER is the thermal insulation board that used under the clinker brick.
| ||||||||||||||||||||||||||||||||||||||||||
4. MEMBRANE
Bituminous membrane is a suitable waterproofing material used in the foundations, curtains, basements, gardens, terraces and roofs of buildings, as well as in structures exposed to different burdens such as bridges and viaducts, in order to protect them against the negative impacts of water and providing living areas with a comfortable waterproofing.
Membrane contains very different reinforcing polymers. These polymers not only make the material highly durable, but also play an active role in the easy application of the product and its perfect waterproofing properties.
Bitumen reinforced with polymers gains its ultimate properties using polyester or fiberglass bearings with different tensile, breakage and tear strengths. An important advantage of bituminous membranes that distinguishes them from other waterproofing materials is that they provide ease of application and use in many different details and are suitable for different climate conditions, in direct proportion with bearings’ properties.
USED AREAS
- Roofs and terraces
- Foundations
- Basement whear walls
- Parking lots
- Bridges and viaducts
- Garden and green roofs
4.1. MEMBRANE PLUS (-5 °C)
It is a plastomeric type waterproofing membrane produced from modified bitumen reinforced with APP (atactic polypropylene). It is produced with fiberglass and polyester felt too. It does not melt or flow in hot weather conditions, it does not crack or break in cold weather conditions. It offers solutions for all waterproofing details especially for terrace and foundation applications.
| 4.2. MEMBRANE PLATIN (-10 °C)
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
4.3. MEMBRAN PREMIUM (-20 °C)
It is an elastomeric type waterproofing membrane produced from modified bitumen reinforced with SBS (Styrene butadiene styrene). Thanks to a special mix, it can remain elastic even at very low temperatures and can maintain the advantages of bending values throughout its life. It provides the ideal insulation for the highly elastic, vibrating and expanding roofs by its structure.
| 4.4. MEMBRAN PRO3kg/sqm or 4kg/sqm waterproofing membrane made of APP-modified bitumen, with fiberglass and polyester reinforcement.
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
