PLASTERBOARD
1. REGULAR PLASTERBOARD
Standard gypsum-based boards, produced with high technology and covered with ivory on one side and gray on the other side, are the boards used to create dry wall systems such as suspended ceilings, partition walls and cladding walls indoors.
| TECHNICAL SPECIFICATIONS AND THE TSE STANDARD | |
| Thickness | 12,5- 15 mm |
| Weight | 12,5- 13,5 kg/m² // 15- 16 kg/ m² |
| Width | 1200 mm |
| Length | 2500 mm |
| Packing | 40 pcs/pallet // 30 pcs/pallet |
USAGE AREAS
It is used in suspended ceiling, partition wall and curtain wall applications in indoor dry wall systems.
2. MOISTURE RESISTANT PLASTERBOARD
It produced with high technology and covered with special cardboard in green on one side and gray on the other, are the boards used to create dry wall systems such as suspended ceilings, partition walls and curtain walls, where water resistance is sought indoors, especially in wet areas.
| TECHNICAL SPECIFICATIONS AND THE TSE STANDARD | |
| Thickness | 9,5 / 12,5 / 15 / 18 mm |
| Weight | 7- 7,5 / 8- 8,5 / 10,5- 11,5 / 14- 15 kg/ m² |
| Width | 1200 mm |
| Length | 2500 / 2600 / 2700 / 2800 / 2900 / 3000 mm |
| Packing | 30 / 50 / 60 pcs/pallet |
USAGE AREAS
It is used in interior dry wall systems, in suspended ceiling, partition wall and curtain wall applications, especially in systems where wet volume performance is required.
3.FIRE RESISTANT PLASTERBOARD
Which are produced with high technology and covered with special cardboard in red on one side and gray on the other side, are the boards used to create dry wall systems such as suspended ceilings, partition walls and curtain walls, where fire resistance is especially sought indoors.
| TECHNICAL SPECIFICATIONS AND THE TSE STANDARD | |
| Thickness | 12,5 / 15 / 18 mm |
| Weight | 9,5- 10,5 / 11,5- 12,5 / 14- 15 kg/ m² |
| Width | 1200 mm |
| Length | 2500 / 2600 / 2700 / 2800 / 2900 / 3000 mm |
| Packing | 30 / 50 pcs/pallet |
USAGE AREAS
It is used in interior dry wall systems to create systems where fire resistance is sought, especially in suspended ceiling, partition wall and curtain wall applications.
4.FIRE AND MOISTURE RESISTANT
It produced with high technology and covered with special cardboard in red on one side and green on the other, are the boards used to create dry wall systems such as suspended ceilings, partition walls and curtain walls, where both water and fire resistance are sought indoors.
| TECHNICAL SPECIFICATIONS AND THE TSE STANDARD | |
| Thickness | 12,5 / 15 / 18 mm |
| Weight | 9,5- 10,5 / 11,5- 12,5 / 14- 15 kg/ m² |
| Width | 1200 mm |
| Length | 2500 / 2600 / 2700 / 2800 / 2900 / 3000 mm |
| Packing | 30 / 50 pcs/pallet |
USAGE AREAS
It is used in interior dry wall systems, especially in suspended ceiling, partition wall and curtain wall applications, to create systems that require both water and fire resistance.
5. EXTERIOR BOARDS
Used in the construction of exterior walls with a moisture resistant and a glass fibre mat. Exterior Boards is a high performance board with a gypsum core containing special additives for moisture and mould resistance. Exterior Boards is reinforced board with a glass-mat on both surfaces providing outstanding performance in humid environments.
This non-paper faced board, free from cellulose content and therefore has a strong inherent resistance to mould growth, which is perfect for wet areas and high-humidity environments including exterior applications. Glass-mats have a physical anchorage in with the gypsum core ensuring a strong bond with the gypsum core that creates a monolithic board of high strength, solidity and exceptional integrity. This high performance board can be used for areas requiring high protection against water and it has been designed especially for exterior applications. This board is a perfect solution for exterior ceilings, external walls systems and façade cladding systems.
5.1. DALSAN – BOARDEX
| BoardeX is an exterior sheathing board used in exterior wall, with its reinforced core against humidity and special orange fiberglass mats. It is used as backerboard beneath all kinds of claddings (including metal claddings, PVC, wood sidings and decorative brick claddings). BoardeX is used for all kind of soffit applications. BoardeX is indispensable for interior wet areas. In areas that stipulates the sheathing of exterior façades with noncombustible materials in accordance with the fire regulation in force, it facilitates the design. BoardeX’s dimensions are %100 match with COREX system sizes and they allow to work on 40 cm and 60 cm axes. In the case that exterior walls to be made with BoardeX exterior façade systems, provide upper values for energy performance class of exterior wall. BoardeX is the first exterior sheathing board of Europe and Turkey that contains gypsum following USA. |
| TECHNICAL SPECIFICATIONS AND THE TSE STANDARD | |
| Length | 1200 – 2400mm |
| Width | 1200 mm |
| Thickness | 12,5 mm 15 mm |
| Average weight | ~10,8 kg/m² ~13,5 kg/m² |
| Shear strength ≥ | 1000 N |
| Total water absorption (by the weight) | ≤5% TS EN 15283-1, H1 |
| Linear variation (Due to change in moisture content) | 0,004 mm/mt.%RH |
| Linear variation (Due to change in temperature) | 0,015 mm/mt.°C |
| Bending radius | 1,5 m |
| Mould resistance | 10 * (ASTM D 3272-12) |
| Water vapour permeability resistance factor | 10 |
| Thermal conductivity | 0,25 W/m.K |
| Edge type | IK(Tapered Edge) – KK(Square Edge) |
| Fire resistance | A1 : TS EN 13501-1 |
| Number of boards in one pallet | 50 pcs/pallet 40 pcs/pallet |
| Standard | TS EN 15283-1+A1 |
| Type | GM – F H1 R |

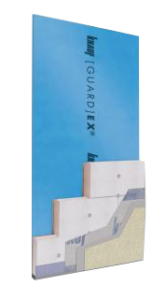

5.2. KNAUF – GUARDEX
| It prevents mould formation and provides insulation thanks to the special gypsum filling and glass fibre mattress cover used in exterior facade systems. It is a lightweight, A1 class fireproof, sustainable exterior cladding board with additives, resistant to water, moisture and external weather conditions. |  |
| TECHNICAL SPECIFICATIONS AND THE TSE STANDARD |
| Description | UNIT | 12,5 mm | 15 mm | STANDARD |
| Licence Plate Type | – | GM-FH1R | GM-FH1R | TS EN 15283-1+A1 |
| Reaction to Fire | class | A1 | A1 | TS EN 13501-1 |
| Weight | kg/m2 | 11 – 12 | 13,5- 14 | – |
| Mould Resistance | puan | 10* | 10* | ASTM D 3273 |
| Width Tolerance | mm | +0 / -4 | +0 / -4 | TS EN 15283-1+A1 |
| Length Tolerance | mm | +0 / -5 | +0 / -5 | TS EN 15283-1+A1 |
| Thickness Tolerance | mm | +0,7 / -0,7 | +0,7 / -0,7 | TS EN 15283-1+A1 |
| Deviation of Short Edge from Perpendicularity (For 1 M Board Width) | mm | ≤ 2,5 | ≤ 2,5 | TS EN 15283-1+A1
|
| Dry Bending Radius | mm | r ≥ 4000 | r ≥ 4000 | – |
| Dimensional Stability (1 Kelvin Heat Change) | mm/ m | 0,013 – 0,02 | 0,013 – 0,02 | TS EN 520+A1 |
| Dimensional Stability (1% in Air Change in Humidity) | mm / m | 0,005 – 0,008 | 0,005 – 0,008 | – |
| Thermal Conductivity Λ | W/(m∙K) | 0,25 | 0,25 | TS EN 12664 |
| Water Vapour Permeability (Dry) | μ | 10 | 10 | EN 12524 |
| Water Vapour Permeability (Wet) | μ | 4 | 4 | EN 12524 |
| Total Water Absorption (Type H1) | % | ≤ 3 | ≤ 3 | TS EN 15283-1+A1 |
| Fracture Load in Bending (Long Edge Line) | N | ≥ 725 | ≥ 870 | TS EN 15283-1+A1 |
| Fracture Load in Bending (Even Short Edge) | N | ≥ 300 | ≥ 360 | TS EN 15283-1+A1
|
* 0% refers to mould growth.

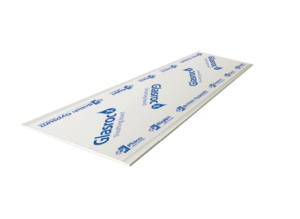

5.3. RIGIPS – GLASROC X
Glasroc X is a high performance board with a gypsum core containing special additives for moisture and mould resistance. Glasroc X is reinforced board with a glass-mat on both surfaces and finished with a UV resistant coating, providing outstanding performance in humid environments. This non-paper faced board, free from cellulose content and therefore has a strong inherent resistance to mould growth, which is perfect for wet areas and high-humidity environments including exterior applications. Glass-mats have a physical anchorage in with the gypsum core ensuring a strong bond with the gypsum core that creates a monolithic board of high strength, solidity and exceptional integrity. This high performance board can be used for areas requiring high protection against water and it has been designed especially for exterior applications. This board is a perfect solution for exterior ceilings, external walls systems and façade cladding systems.
TECHNICAL SPECIFICATIONS AND THE TSE STANDARD |
PROPERTIES | VALUES | UNIT |
Sheet class | GM-FH1 (EN 15283-1) | – |
Thickness | 12,5 (±0,7) | mm |
Width | 1200 | mm |
Height | 2400-3000 (+0 / -4) | mm |
Weight | 10,7 | Kg/m² |
Total water absorbtion (EN 520) | ≤ 5 (H1) | % |
Surface water absortion (EN 520) | < 45 | g/m² |
Longitudinal | > 540 | N |
Crosswise | > 210 | N |
Mold resistance (ASTM D3273) | 10 (Mold is not formed) | – |
Water vapor resistance | 18,2 | – |
6. SPECIAL PLASTERBOARD
6.1.RIGIPS – BİZON IMPACT RESISTANT PLASTERBOARD
More Robust and Stronger Plasterboard Systems
FEATURES
- High Impact Resistance
- High Sound Insulation
- High Fire Resistance
Rigips Bison Impact Resistant Drywall It provides high impact resistance in drywall and ceiling thanks to its special formula with increased surface hardness and core density. It is resistant to physical impacts and minimises impacts. Reduces possible renovation costs and also increases indoor comfort with high sound insulation. It is suitable for all kinds of surface applications with its smooth finish.
USAGE AREAS
- Houses – High Impact Resistance and Sound Insulation: Partition walls between two rooms or two flats
- Educational Buildings – High Impact Resistance, Sound Insulation, Fire Resistance: Partition walls between classrooms, corridors
- Health Buildings – High Impact Resistance and Sound Insulation: Partition walls between patient rooms, corridors, examination rooms, operating theatres
- Hotels – High Impact Resistance, Sound Insulation, Fire Resistance: Partition walls between guest rooms, corridors
TECHNICAL SPECIFICATIONS AND THE TSE STANDARD | |
Product Name | Rigips – Bizon Impact Resistant Plasterboard |
Plate type | DFIR |
Fire class | A2-s1,d0 |
Surface hardness diameter | Diameter < 15 mm |
Edge detail | Thinned edge, forehead edge |
Dimensions – Width x Length (mm) | 1200 x 2400 – Standard length |
Thickness (mm) | 12,5 15 |
Vertical endurance | > 725 > 870 |
Parallel endurance | > 300 > 360 |
Weight (kg/m2) | 12,0 – 13,0 15,0 – 16,0 |
6.2.RIGIPS – HİPO IMPACT AND WATER RESISTANT PLASTERBOARD
More Robust and Waterproof Plasterboard Systems
FEATURES
- High Impact Resistance
- High Sound Insulation
- High Fire Resistance
Rigips Hipo Impact and Water Resistant Drywall provides high impact resistance thanks to its high impact resistance. It can be used in wet areas with its special formula with increased surface hardness and core density. While it is resistant to physical impacts and minimises possible renovation costs, it also increases indoor comfort with its high sound insulation performance and fire resistance. It is suitable for all kinds of surface applications with its smooth finish.
USAGE AREAS
- Houses – High Impact Resistance and Water/Moisture Resistance: Bathrooms and kitchens
- Educational Buildings – High Impact Resistance and Water / Moisture Resistance: Kitchens, canteens, toilets
- Health Structures – High Impact Resistance and Water / Moisture Resistance: Operating theatres, toilets, dining halls, kitchens, bathrooms
- Hotels – High Impact Resistance and Water / Moisture Resistance: Restaurants, bathrooms, toilets, spas
TECHNICAL SPECIFICATIONS AND THE TSE STANDARD | |
Product Name | Hipo Impact And Water Resistant Plasterboard |
Plate type | DFH2IR |
Fire class | A2-s1,d0 |
Total Water Absorption Surface | < %10 |
Hardness | Diameter < 15 mm |
Edge Detail | Thinned Edge, Forehead Edge |
Dimensions – Width X Length (mm) | 1200 x 2400 – Standard length |
Thickness (mm) | 12,5 15 |
Vertical Endurance | > 725 > 870 |
Parallel Endurance | > 300 > 360 |
Weight (kg/m²) | 12,0 – 13,0 15,0 – 16,0 |

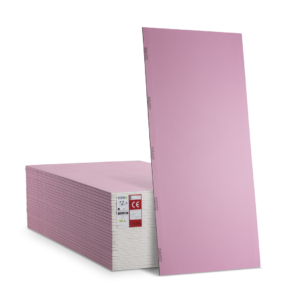

6.3.DALSAN – PREMIUM COREX
Premium COREX, with its high density, is a plasterboard with enhanced surface hardness that is used in the construction of partition walls, suspended ceilings and dry-linings where high impact resistance is required. Premium COREX is reinforced with water- repellent additives for resistance to water and moisture, and special fibre additives for resistance to fire. Premium COREX, provides higher fire resistance than standard plasterboards. Premium COREX, provides high impact resistance with its exclusive core component. Premium COREX has both sides coated with special paper that provides high impact resistance and integrity. Premium COREX, absorbs less water than standard plasterboards thanks to its core component. Premium COREX, offers solutions against the damage that may arise due to impacts in areas with heavy traffic of materials and people. Premium COREX can be used in public areas such as schools, hospitals, cinemas and commercial and business centres.
TECHNICAL SPECIFICATIONS AND THE TSE STANDARD |
PROPERTIES | GENERAL TYPE | ALL TYPE |
Length | 2500 mm | 2000 mm – 2500 mm |
Width | 1200 mm | 1200 mm |
Thickness | 12,5 mm | 12,5 mm 15 mm |
Average weight | ~12,65 kg/m² | ~12,65 kg/m² ~15,20 kg/m² |
Density | ≥ 1000 kg/m³ | ≥ 1000 kg/m³ |
Surface hardness | ≤ 15 mm | ≤ 15mm (According to TS EN 520+A1) |
Flexural strength (Perp. to paper fibres)
| ≥ 725 N | ≥ 725 N ≥ 875 N |
Flexural strength (Parallel to paper fibres)
| ≥ 300 N | ≥300 N ≥ 360 N |
Edge type | TE | TE (Tapered Edge) – KK (Square Edge) |
Thermal conductivity value (λ) | 0,25 W/m.K | |
Water absorption (by weight)** | ≤ %10 | |
Fire resistance class | A2-s1,d0 (According to TS EN 520 Annex:B) | |
6.4.KNAUF – FIREBOARD
It is a type of A1 class special plasterboard that does not have paper on both surfaces, covered with glass fibre mattress and provides fire resistance up to 3 hours.
FEATURESØ High fire resistance.A1 class fireproof material Ø Dimensional stability with temperature change Ø Electric arc resistance Ø Clean and easy assembly, time saving Ø High surface quality
USAGE AREASØ Partition wall Ø Suspended ceiling Ø Shaft wall Ø Coating of steel constructions Ø Coating of ventilation and cable ducts Ø Marine equipment |
| ||||||||||||||||
6.5. KNAUF – SAFEBOARDIt is a special type of lead-free drywall that has the ability to hold X-ray rays and additionally has a high value of sound insulation.
FEATURESØ X-ray protection Ø Lead-free Ø Fire resistance Ø High sound insulation Ø Bendability Ø Clean and easy assembly Ø Time saving Ø High surface quality
USAGE AREASØ Suspended ceiling Ø Partition wall Ø Wall cladding | ||||||||||||||
6.6. KNAUF – SILENTBOARDIt is a special drywall type with high sound insulation, easy and fast application. Front and back side are covered with brown paper.
FEATURESØ Superior sound insulation Ø High performance at low frequencies Ø Fire resistance Ø Bendability Ø Fireproof material Ø Dimensional stability under temperature changes Ø Clean and easy assembly Ø High surface quality USAGE AREASØ Suspended ceiling Ø Partition wall Ø Wall cladding | ||||||||||||||

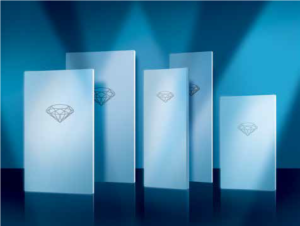

6.7. KNAUF – DIAMANT
It is a special type of plasterboard with increased impact resistance, strength, fire and water resistance, sound insulation properties. Front and back sides are covered with blue coloured paper.
FEATURESØ Impact resistance Ø Fire resistance Ø Moisture resistance Ø High value sound insulation Ø Higher walls Ø High load carrying capacity Ø Increased surface hardness Ø Clean and easy assembly Ø Time saving Ø High surface quality
USAGE AREASØ Partition wall Ø Wall cladding Ø Suspended ceiling Ø Shaft wall |
| ||||||||||||||
